How to Detect and Fix HVAC Leaks

HVAC leaks are a common problem that can lead to inefficient heating and cooling, higher energy bills, poor indoor air quality, and uncomfortable living conditions. Whether it's air escaping through duct leaks or refrigerant leaking from your air conditioning system, identifying and fixing these issues promptly can save you money and extend the lifespan of your HVAC equipment. This guide will walk you through the process of detecting and repairing common HVAC leaks.

Why HVAC Leaks Matter

Before diving into detection and repair methods, it's important to understand why addressing HVAC leaks should be a priority:

• Energy Efficiency: In the average home, 20-30% of the air moving through duct systems is lost due to leaks, holes, and poorly connected ducts. This forces your system to work harder, consuming more energy.
• Cost Savings: Leaky systems lead to higher utility bills. For retailers with multiple locations, refrigerant leaks can cost nearly $500,000 annually.
• Comfort: Leaks often result in inconsistent temperatures throughout your home, with some rooms feeling too hot while others remain too cold.
• Indoor Air Quality: Leaks can pull dust, allergens, and moisture from attics, crawlspaces, or basements into your living space, affecting air quality and potentially triggering respiratory issues.
• Environmental Impact: Refrigerant leaks contribute to greenhouse gas emissions and are regulated by the EPA.

Signs You Have an HVAC Leak

Recognizing the symptoms of HVAC leaks is the first step toward addressing them. Here are common indicators that your system might be leaking:

Duct Leakage Signs

• Rooms that are difficult to heat or cool despite the thermostat setting
• Unusually high energy bills
• Excessive dust around vents or in your home
• Whistling sounds coming from ductwork when the system is running
• Visible dust buildup around duct connections
• Tangled or kinked flexible ducts
• Stuffy rooms that never seem comfortable

Refrigerant Leak Signs

• Reduced cooling capacity (rooms not getting as cold as they should)
• Air conditioner running continuously but not cooling effectively
• Ice forming on the evaporator coils
• Hissing or bubbling sounds near the AC unit
• Oil residue around connections (a telltale sign of leakage)
• Higher electricity bills during cooling season

Methods to Detect HVAC Leaks

Different types of leaks require different detection methods. Here's how to identify where your system might be losing efficiency:

Detecting Duct Leaks

1. Visual Inspection

Start with a thorough visual inspection of all accessible ductwork. Look for:

• Disconnected joints or sections
• Visible holes or tears
• Crushed or damaged flexible ducts
• Missing or deteriorated seals at connections
• Dust streaks around joints (indicating air is escaping)

Focus on areas where the ductwork connects to the furnace, transitions between materials, or passes through walls or floors. These are common leak points.

2. The Touch Test

With your system running, carefully feel around joints and connections for escaping air. This simple test can quickly identify major leaks in accessible areas.

3. Smoke Test

For a more thorough assessment:

1. Turn on your HVAC system's fan
2. Light an incense stick and slowly move it near suspected leak areas
3. Watch for smoke being drawn toward or blown away from the ductwork
4. Any disruption in the smoke's normal upward flow indicates a leak

4. Building Pressurization Test

For a more comprehensive test:

1. Close all windows and exterior doors
2. Turn off combustion appliances
3. Turn on all exhaust fans (bathroom fans, range hood, etc.)
4. Use the smoke test described above to check for leaks

The negative pressure created makes leaks easier to detect.

5. Professional Duct Testing

For the most accurate assessment, professional contractors use a duct leakage tester. This device:

• Seals all registers and return grilles
• Connects a calibrated fan to one opening
• Pressurizes the duct system
• Measures airflow and pressure to calculate leakage rates

Detecting Refrigerant Leaks

Refrigerant leaks require different techniques and are often best left to professionals due to the specialized equipment needed and environmental regulations regarding refrigerants.

1. Electronic Leak Detection

Professional HVAC technicians use electronic leak detectors that sense halide gases (like chlorine and fluorine in refrigerants). These sensitive instruments can locate even small leaks.

2. Ultrasonic Leak Detection

This method uses devices that detect the high-frequency sound produced when refrigerant escapes through a small opening. The detector amplifies this sound, making leaks audible to technicians.

3. Fluorescent Dye Testing

A fluorescent dye is added to the refrigerant, which then circulates through the system. Using a UV light, technicians can locate leaks where the dye has escaped.

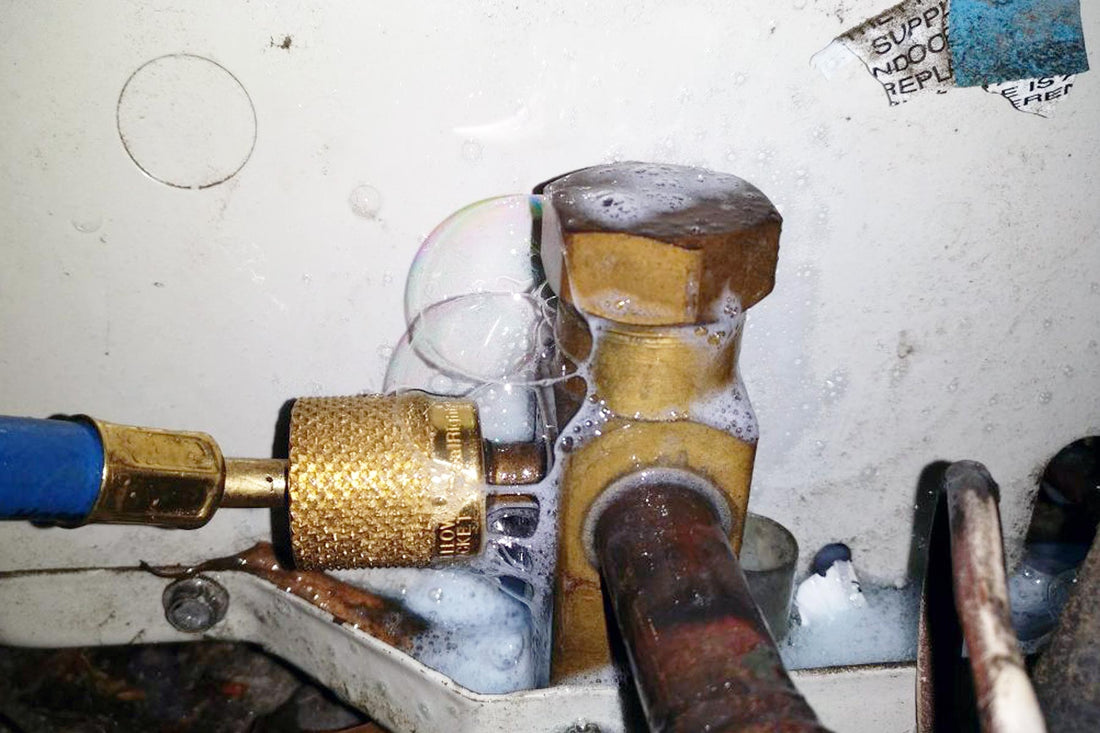

4. Bubble Solution Method

A soapy solution is applied to suspected leak areas. When refrigerant escapes, it creates bubbles, pinpointing the leak location. This method is particularly effective for visible components.

Fixing HVAC Leaks

Once you've identified leaks in your system, it's time to address them. The repair approach depends on the type and location of the leak.

Repairing Duct Leaks

Many duct leaks can be addressed by homeowners with basic DIY skills. Here's how:

1. Gather the Right Materials

For effective duct sealing, you'll need:

• Mastic sealant: A water-based paste that creates a permanent, flexible seal
• Foil tape: UL-listed metal tape (not regular duct tape, which deteriorates quickly)
• Fiberglass mesh tape: For reinforcing larger gaps before applying mastic
• Zip ties: For securing flexible duct connections
• Basic tools: scissors, utility knife, disposable brushes for mastic application

High-quality furnace filters from Dan the Filter Man are also essential after sealing ducts to prevent dust and debris from circulating in your newly-efficient system.

2. Prepare the Surfaces

Before applying any sealant:

1. Clean all surfaces to remove dust and oil
2. Ensure connections are properly aligned
3. Remove any old, failing tape or sealant

3. Apply the Appropriate Sealant

• For small gaps (less than 1/4 inch): Apply mastic directly with a brush or foil tape
• For larger gaps: Bridge with fiberglass mesh tape first, then cover with mastic
• For disconnected sections: Reconnect properly, secure with sheet metal screws if needed, then seal with mastic

4. Pay Special Attention to Critical Areas

Focus on these high-priority locations:

• Connections between the furnace and main ducts
• Duct boots where they connect to floors, walls, or ceilings
• All joints and seams in the ductwork
• Areas where ducts may have been crushed or damaged

Addressing Refrigerant Leaks

Important note: Refrigerant leaks should generally be handled by certified HVAC professionals. Federal regulations require proper handling of refrigerants, and special equipment is needed for repairs.

However, knowing the common leak locations can help you communicate effectively with your technician:

1. Valve cores (Schrader valves): Often leak due to missing or damaged caps
2. Flare connections: Where copper lines connect to the indoor or outdoor unit
3. U-bends in evaporator coils: Vibration can cause stress cracks over time
4. Condenser coil: Particularly vulnerable to corrosion and physical damage
5. Service valves: Can develop leaks around valve stems

When to Call a Professional

While some HVAC leaks can be addressed by homeowners, certain situations call for professional assistance:

• All refrigerant-related issues
• Ductwork that's inaccessible (inside walls, floors, or high ceilings)
• Leaks near gas lines or combustion equipment
• When a comprehensive duct leakage test is needed
• If you're unsure about the source or severity of leaks
• When previous DIY repair attempts haven't resolved the issue

According to the U.S. Department of Energy, professional duct sealing can improve HVAC efficiency by up to 20%, making it a worthwhile investment.

Preventing Future HVAC Leaks

Prevention is always better than repair. Here are strategies to minimize future HVAC leaks:

Regular Maintenance

• Schedule annual professional HVAC service
• Replace furnace filters regularly to prevent system strain
• Keep outdoor units clean and free of debris
• Inspect visible ductwork periodically for new damage

System Protection

• Install high-quality air filters appropriate for your system
• Consider UV air purifiers to reduce contaminants
• Maintain proper humidity levels to prevent condensation-related damage
• Ensure proper installation of any new HVAC components

Conclusion

HVAC leaks can significantly impact your home's comfort, your energy bills, and your system's longevity. By regularly inspecting for signs of leakage, addressing issues promptly, and implementing preventive measures, you can maintain an efficient, effective heating and cooling system.

Remember that while some leaks can be repaired with DIY methods, others require professional expertise. When in doubt, consult with a qualified HVAC technician who can accurately diagnose and repair complex issues.

By keeping your system leak-free and using quality furnace filters, you'll enjoy better indoor air quality, more consistent temperatures throughout your home, and the peace of mind that comes with an efficiently operating HVAC system.
